Lower Deck
Containers
AviusULD S-series Lower Deck Cargo Containers are designed to meet every airline’s need for superior durability, minimized weight, and adaptability to the industry’s unique challenges.
By combining durable and high-quality materials in a modular design with interchangeable parts, we guarantee the lowest TCO (Total Cost of Ownership), easy maintenance and optimized ULD handling.
Modular Design
Lowest TCO
User Friendly
Easy Maintenance
Superior Durability
Avius ULD
Design Features
Seamless fitting and smoothness due to contour-adapted extrusions.
Maximum robustness due to strong gussets and extrusions.
Easy and ergonomic handling due to door locking mechanism.
Repair cost-reduction due to individually replaceable forged corners.
Extrusion inserts create resistance to high impact forces and bending.
Protection of cargo and bags with smooth interior surfaces.
Avius ULD
Design Features
Panel Materials
Endumax
- Industry-wide lowest weight AKE container at 51 kg
- High-impact resistant composite material
- Minimizes weight while maximizing durability and fuel-efficiency
Herculight
- Weighs 55 kg (10 kg less than aluminum configuration)
- Performs 18% better than industry-standard AKE container
- Excellent Total Cost of Ownership (TCO)
Aluminum
- 65 kg for a standard AKE container
- A tried and tested design with the ultimate balance between weight and cost
Design Features
SEN Door
- Easy, quick and tight closure with new mushroom-locking mechanism
- Reduces opening and closing time an average of 30 seconds
- 30% stronger door with reinforcement
- Lowers handling time and cost by 15%
Design Features
Self-Roll-Up Door
Durable and easy to operate thanks to our new SRU system, with a sliding lock clasp and locking mechanism integrated in the bottom door bar.
Design Features
Solid Door
Safe and easy operation due to our ergonomic toggle lock system, which includes a visible status indicator. Suitable for all custom seal designs.
Avius ULD
Product Offer
Lower Deck Container types and design options
| ULD Type | Base L x W | FRC* | Panel Material | Base Type | Door Type | ||||
|---|---|---|---|---|---|---|---|---|---|
| Aluminum | Herculight | Endumax | Non-Forklift | Forklift | Flexible | Solid | |||
| DPE | 47 x 60.4 | ||||||||
| AKH | 60.4 x 61.5 | ||||||||
| AKE | 60.4 x 61.5 | ||||||||
| DQP | 60.4 x 96 | ||||||||
| DQF | 60.4 x 96 | ||||||||
| ALP | 60.4 x 125 | ||||||||
| ALF | 60.4 x 125 | ||||||||
| AAP | 88 x 125 | ||||||||
| AAF | 88 x 125 | ||||||||
| AMP | 96 x 125 | ||||||||
| AMF | 96 x 125 | ||||||||
Common ULD Types

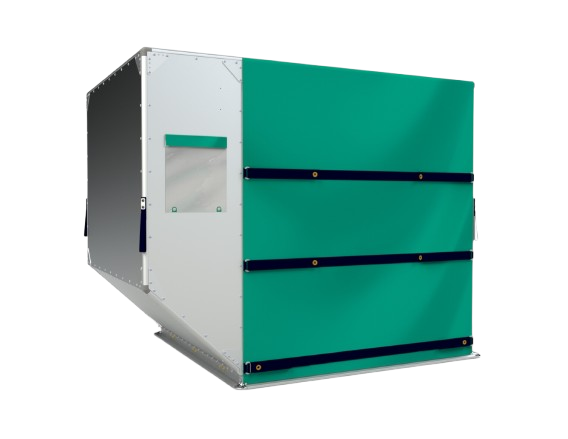

AKE

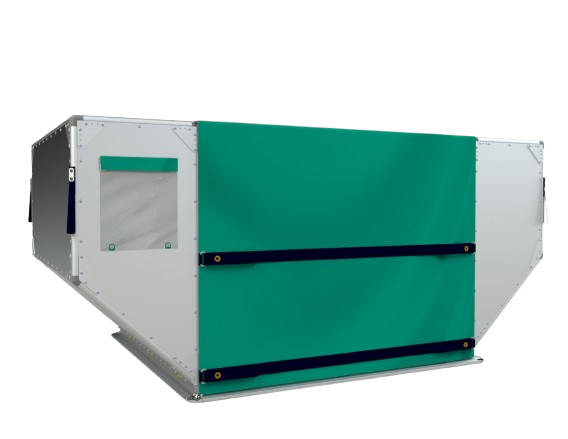

AKH

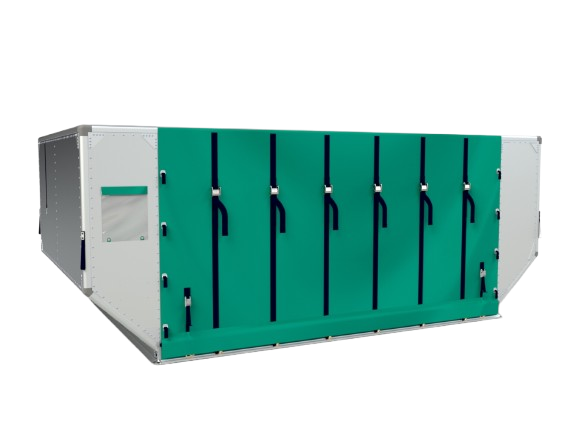

AMF

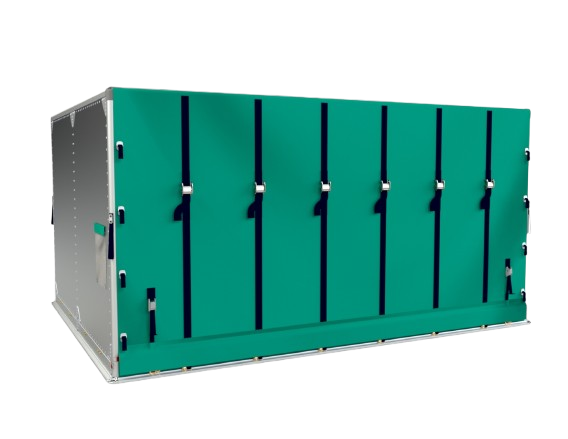

AMP

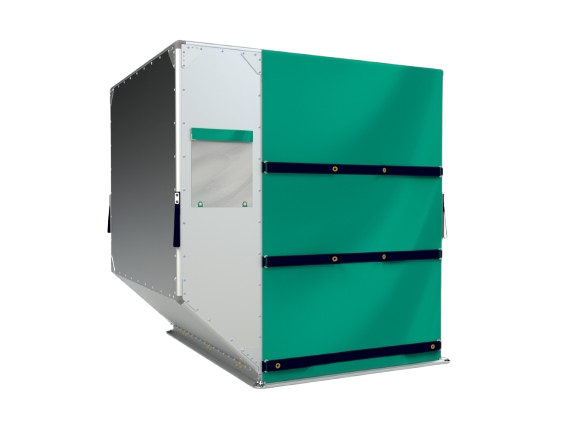

DPE

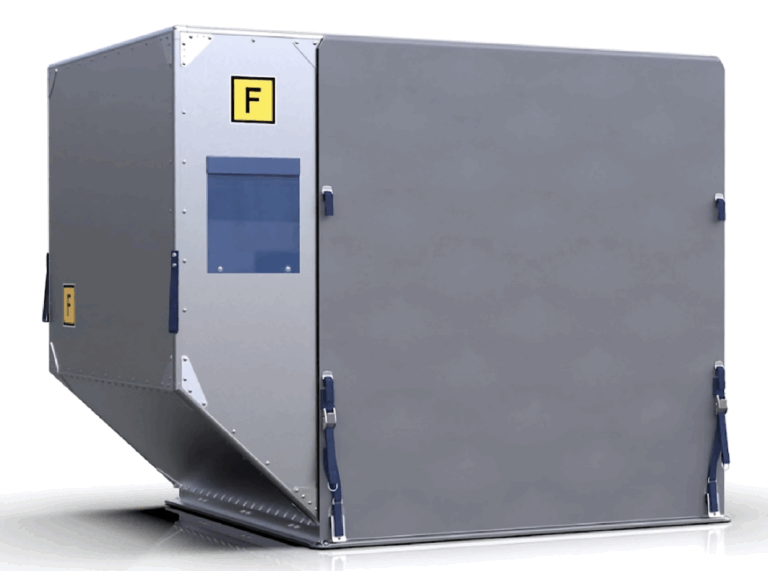

Fire Resistant container (FRC)
All types of main deck container may also opt for a Fire Resistant Container (FRC).
Key advantages
- Fire Resistant Containers (FRCs) provide an additional layer of safety against fire in the container contents.
- Our FRCs are proven to withstand and contain fires for 6 hours, including fires containing lithium batteries.
- Protects load and operators due to 100% smooth interior and innovative patented ergonomic door solution.
- Designed for maximum robustness with cross-utilization and minimum number of unique parts.
