Pallets &
Extenders
AviusULD Pallets are manufactured using the strongest extrusion and sheet alloys to ensure high impact resistance and reinforced stiffness. Additionally, each pallet is equipped with solid reinforcements inserted in every corner, enhancing its ability to withstand day-to-day handling in the aviation logistics chain.
Modular Design
Lowest TCO
User Friendly
Easy Maintenance
Superior Durability
Avius ULD
Design Features
The pallet‘s cross-section design maximizes loading area.

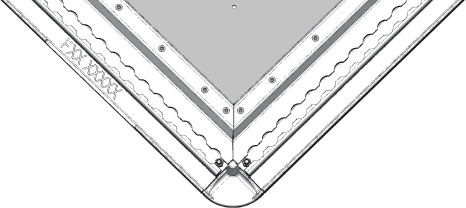

Repair cost-reduction due to individually replaceable forged corners.
Increased pallet stiffness due to inserted solid corner reinforcements.
Pallet edge rail coloring, airline code, and/or logo can be custom-built per customer‘s preference.
High-quality engraving for optimized legibility. Front cut-out for stacked condition.
Avius ULD
Product Offer
Pallets types and design options
| Base sheet thickness | |||||||
| ULD Type | Size / Width (inch) | New Corner* | 2.5 mm | 2.7 mm | 3.0 mm | 3.7 mm | 3.9 mm |
|---|---|---|---|---|---|---|---|
| PKC | 60.4 x 61.5 | ||||||
| PLA | 125 x 60.4 | ||||||
| PBJ | 88 x 108 | ||||||
| PAJ | 88x x125 | ||||||
| PMC | 96 x 125 | ||||||
| FPE | 47 x 60.4 | ||||||
| FEB | 53 x 88 | ||||||
| FYB | 55 x 96 | ||||||
| FQA | 60.4 x 96 | ||||||
| FNA | 61.5 x 96 | ||||||
| FLA | 60.4 x 125 | ||||||
Common ULD Types

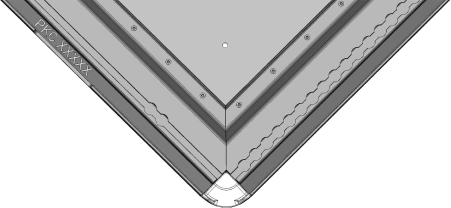

PKC

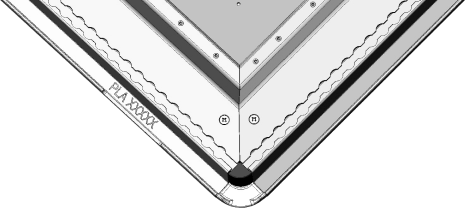

PLA
PBJ

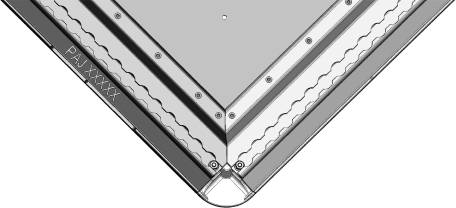

PAJ

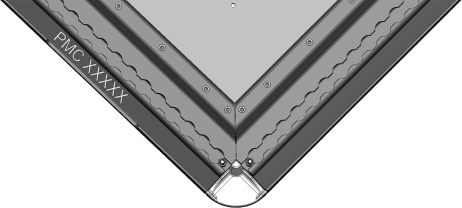

PMC
Track and Trace
We offer the capability, together with our partners, to custom fit these devices into a pallet or container base upon request.
Pallet Extenders

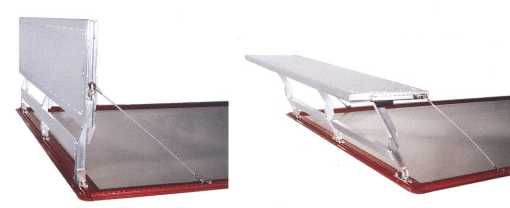

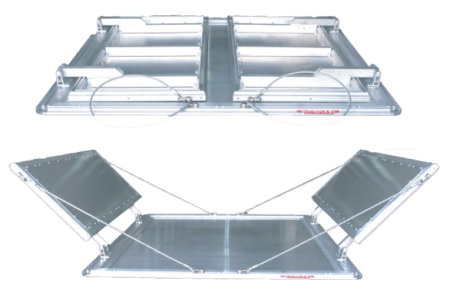

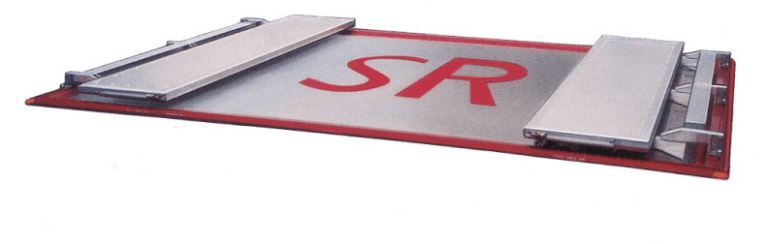

AviusULD’s Pallet Extenders optimize cargo capacity by supporting items that extend beyond the short or long sides of the pallet. With slanted designs and adjustable horizontal platforms, they ensure efficient volume utilization while maintaining operational flexibility. When not in use, the extenders fold onto the pallet sheet and feature a flat stacking surface for easy storage. This design reduces stacking volume by up to 37%, saving valuable space and simplifying logistics.
To ensure maximum usability, Pallet Extenders are customizable to fit standard pallet sizes and aircraft contours, enhancing compatibility and operational efficiency across fleets.
Avius ULD
Design Features
Constructed with the same high-quality materials as AviusULD containers, Pallet Extenders feature a modular, non-welded design for easy repair and interchangeability. They are compatible with all standard aircraft cargo pallets, using a standardized seat track shape for seamless integration.
User-friendly by design, these extenders can be operated by a single person without special tools. Their intuitive setup and storage processes simplify operations, ensuring efficiency and adaptability in ground handling workflows.
Product Offer
pallet extender
| Size / Width | Slanted | Platform / Vertical |
|---|---|---|
| 60.4” | ||
| 88” | ||
| 96” |
Technical Specification
| Type | Size / Width | Plallet Size | Extrusion Alloy | Sheet alloy | Weight | Max. Load* | Contour / Height | Add. Volume |
|---|---|---|---|---|---|---|---|---|
| INCH | IATA Code | [kg / lb] | [kg / lb] | IATA Code / inch | m3 / ft3 | |||
| Slanted | 60.4” | 60.4” | 7000 series | 6000 series | 12 / 27 | N/A | N/A | N/A |
| Slanted | 88” | 88” | 7000 series | 6000 series | 17 / 38 | N/A | N/A | N/A |
| Slanted | 96” | 96” | 7000 series | 6000 series | 18 / 40 | N/A | N/A | N/A |
| Platform | 60.4” | K | 7000 series | 6000 series | 15 / 33 | 350 / 772 | H / 46” | 0.412 / 14.549 |
| Platform | 60.4” | L | 7000 series | 6000 series | 15 / 33 | 623 / 1373 | F / 64” | 0.723 / 25.532 |
| Platform | 88” | A/M | 7000 series | 6000 series | 22 / 49 | 623 / 1373 | F / 64” | 1.081 / 38.175 |
| Platform | 96” | M | 7000 series | 6000 series | 23 / 51 | 600 / 1323 | F / 64” | 1.185 / 41.847 |
